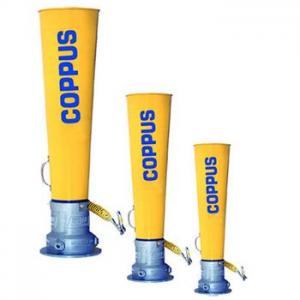

COPPUS JECTAIR and Hornet HP

时间:2020-03-07 19:19:08



High-Performance, Highly-Efficient Venturi Air Movers

The unmatched performance of the COPPUS Jectair HP is recognized throughout the industry. When compared with older-style air horns, the patented air mixing chamber of the Jectair HP produces up to 26 percent savings on compressed air consumption (see efficiency performance charts).

Operating Principle

Compressed air or steam is admitted to the Jectair through a single inlet connection in the housing leading to the mixing chamber. The air or steam jetted from the nozzle creates a Venturi action which induces a large volume of surrounding air to enter the Jectair through the aerodynamic inlet bell. The air is then discharged at high velocity through the horn-shaped diffuser. NOTE: Operating efficiency depends on compressed air volume and pressure (see performance/efficiency charts).

Features

  • Available in five sizes: 9, 8, 6-HP, 3-HP,
  • High-Performance (HP) and Hornet models available in three sizes: 6-HP, 3-HP and 3S-HP
  • Air flows range from 1,370 to 8,900 cfm (2,328 to 15,121m3/hr)
  • Induction ratios up to 40:1
  • Multiple expansion nozzles machined into housing
  • High static pressure capabilities
  • Diffuser material available in steel, aluminum or shock-resistant polymer (Hornet HP)
  • No moving parts — virtually maintenance-free
  • Static bonding cable with spring tension grip and replaceable contact tips standard on all models
  • Accepts flexible duct on diffuser end (optional duct adapter for inlet end available)
  • Tripod for stationary mounting available (see accessories)

 \Efficiency Performance

Inlet
Pressure
Model Air Flow
cfm (
m3/hr)
Air
Consumed
(scfm)
Induction
Ratio
60 psig
4,2kg/cm2

3-HP 1520
(2595)
47
(80)
32.3
6-HP 3980
(6762)
98
(167)
40.6
8 5600
(9515)
178
(302)
31.5
9 6880
(11,096)
265
(450)
25.8
80 psig
5,6kg/cm2

3-HP 1700
(2888)
61
(104)
27.8
6-HP 4500
(7645
126
(214)
35.7
8 6250
(10,620)
233
(396)
26.8
9 8000
(13,592)
336
(571)
23.8
100 psig
7kg/cm2

3-HP 1860
(3160)
72
(122)
25.8
6-HP 4870
(8274)
153
(260)
31.8
8 6750
(11,469)
282
(479)
23.9
9 8900
(15,121)
410
(697)
21.7
